MOBILE LUBE SKIDS

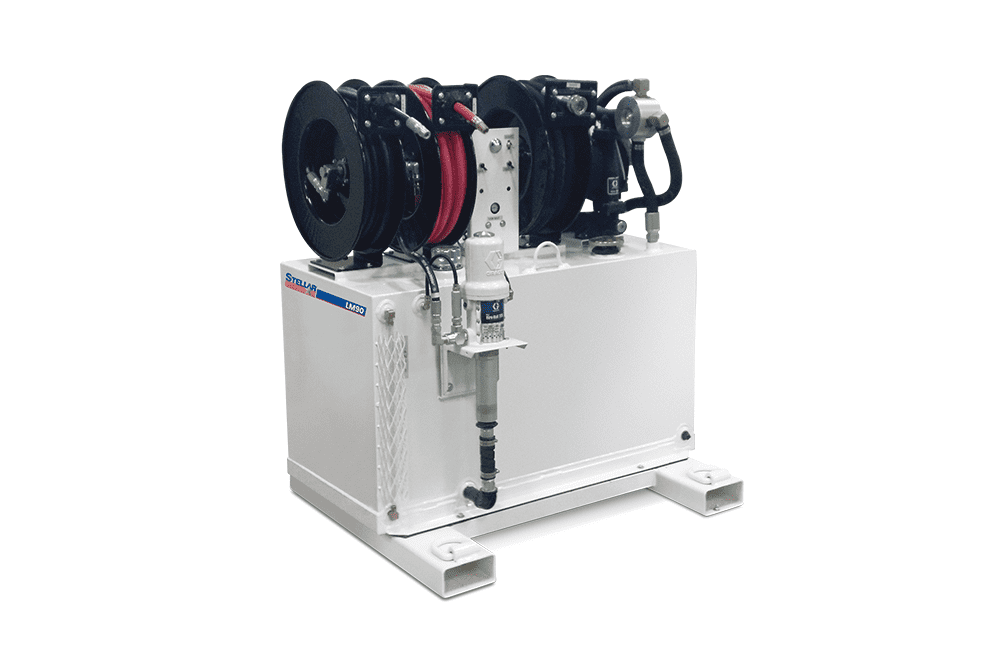

LM90 Mobile lube skid

    • One (1) 45-gallon new oil tank with filler breather cap & sight gauge

    • One (1) 45-gallon salvage oil tank w/ prevent cap

    • Graco pump for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm salvage pump with 4-way valve for evacuation and discharge of salvage tank

    • 50’ x 1/2” oil reel, 35’ x 3/4” salvage reel

    • Optional 50’ x 1/2” air reel

    • 3” x 6” forklift sleeves w/ D-Ring tie-downs

    • Dimensions: 47.5”W x 32”D x 47”H

    • Dry Weight: 550 lbs

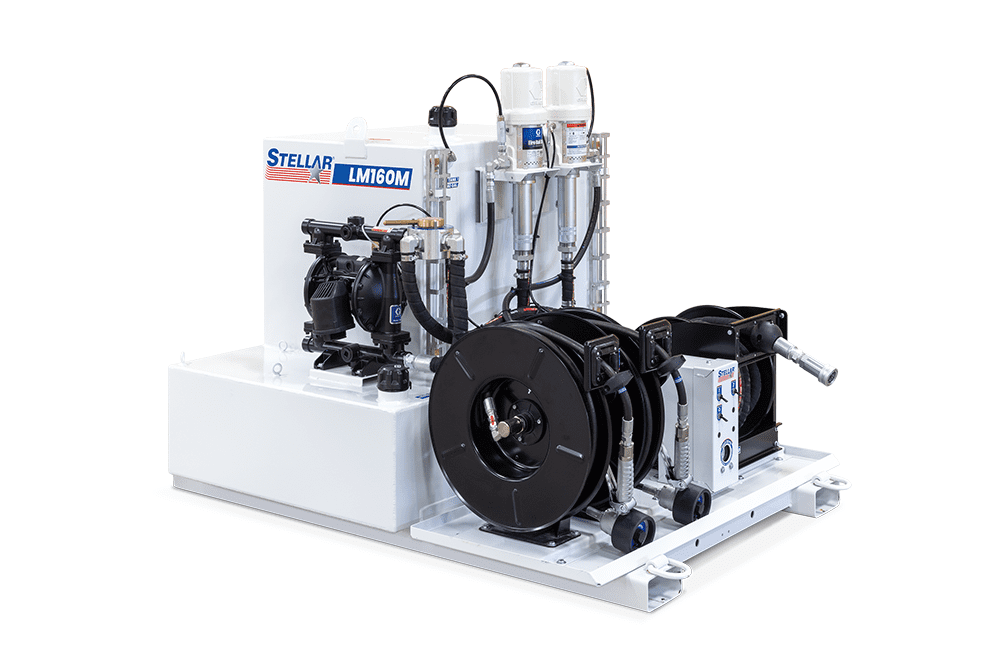

LM160 Mobile lube skid

    • Two (2) 40-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 80-gallon salvage oil tank with prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm pump for used oil, including a 4-way valve for evacuation/discharge

    • 50’ x 1/2” oil reels, 35’ x 3/4” salvage reel

    • Optional 50’ x 1/2” air reel

    • Optional 35 lb or 120 lb grease kit w/ 50’ x 3/8” grease reel

    • 3” x 6” forklift sleeves with D-Ring tie-downs

    • Dimensions:  47-1/2”W x 63”D x 46”H

    • Dry Weight: 750 lbs

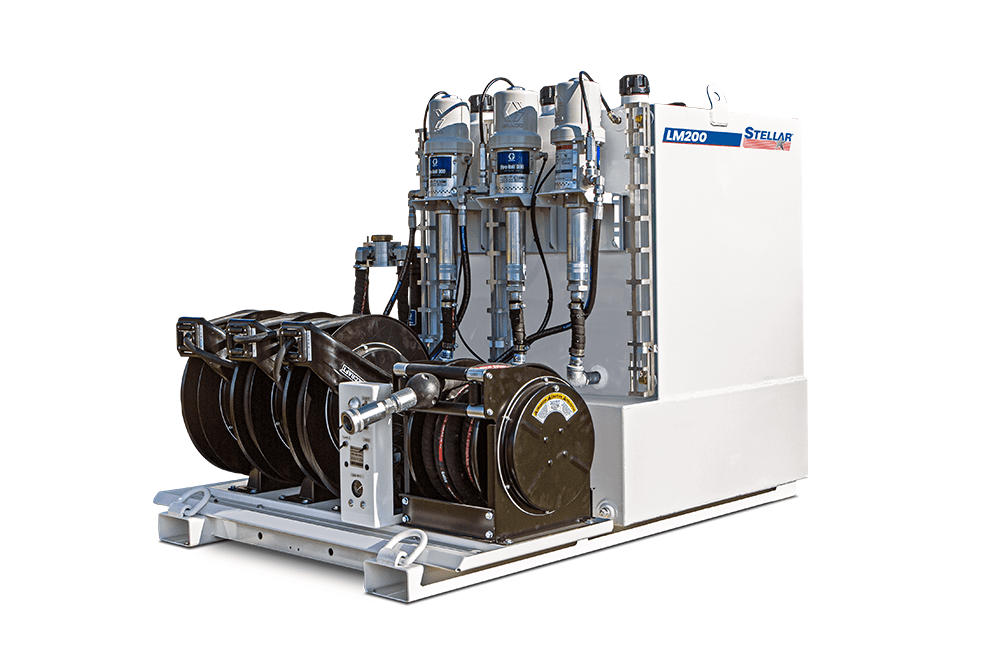

LM200 Mobile lube skid

    • Three (3) 40-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 80-gallon salvage oil tank with prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm pump for used oil, including a 4-way valve for evacuation/discharge

    • 50’ x 1/2” oil reels, 35’ x 3/4” salvage reel

    • Optional 50’ x 1/2” air reel

    • Optional 35 lb or 120 lb grease kit w/ 50’ x 3/8” grease reel

    • 3” x 6” forklift sleeves with D-Ring tie-downs

    • Dimensions:  47-1/2”W x 66”D x 49”H

    • Dry Weight: 1,100 lbs

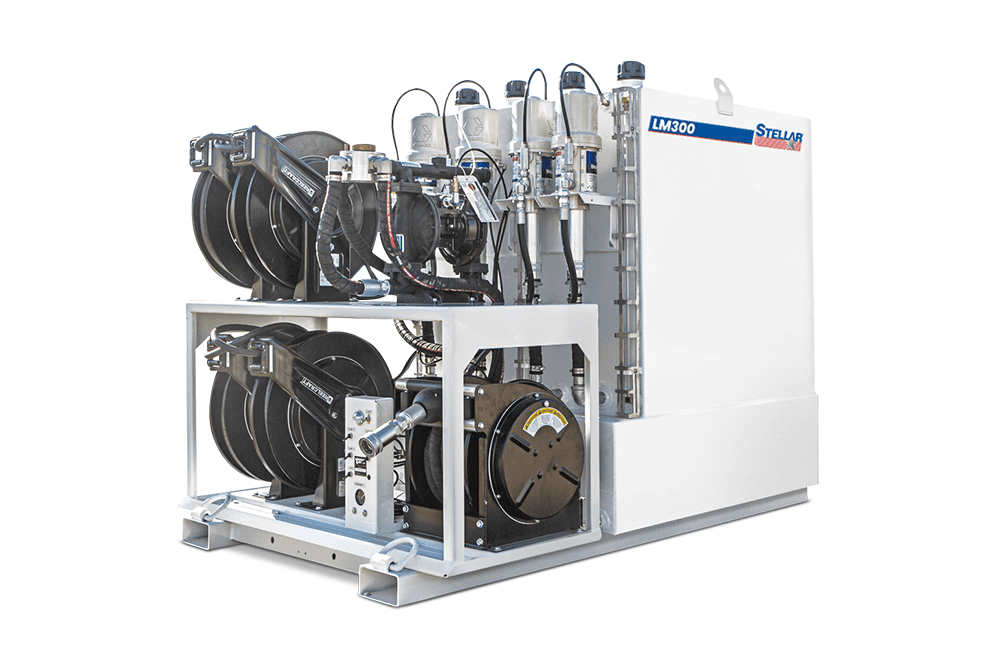

LM300 Mobile lube skid

    • Four (4) 50-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 100-gallon salvage oil tank with prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm pump for used oil, including a 4-way valve for evacuation/discharge

    • 50’ x 1/2” oil reels, 35’ x 3/4” salvage reel

    • Optional 50’ x 1/2” air reel

    • 3” x 6” forklift sleeves with D-Ring tie-downs

    • Dimensions:  47-1/2”W x 72”D x 56”H

    • Dry Weight: 1,300 lbs
