Permanent LUBE SKIDS

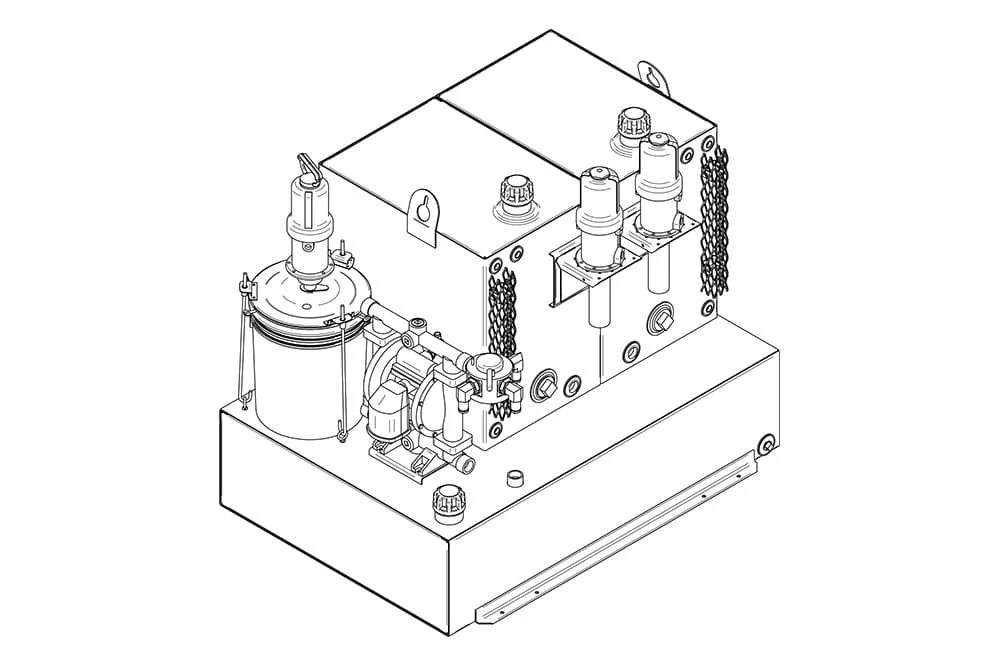

LM160 permanent lube skid

    • Two (2) 40-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 80-gallon salvage oil tank w/ prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm salvage pump w/ 4-way valve for evacuation and discharge of salvage tank

    • 25’ or 50’ new oil reels

    • 25’ or 35’ salvage oil reel

    • Optional 35 lb or 120 lb greaser

    • Dimensions:  47-1/2”W x 36”D x 43”H

    • Dry Weight: 500 lbs

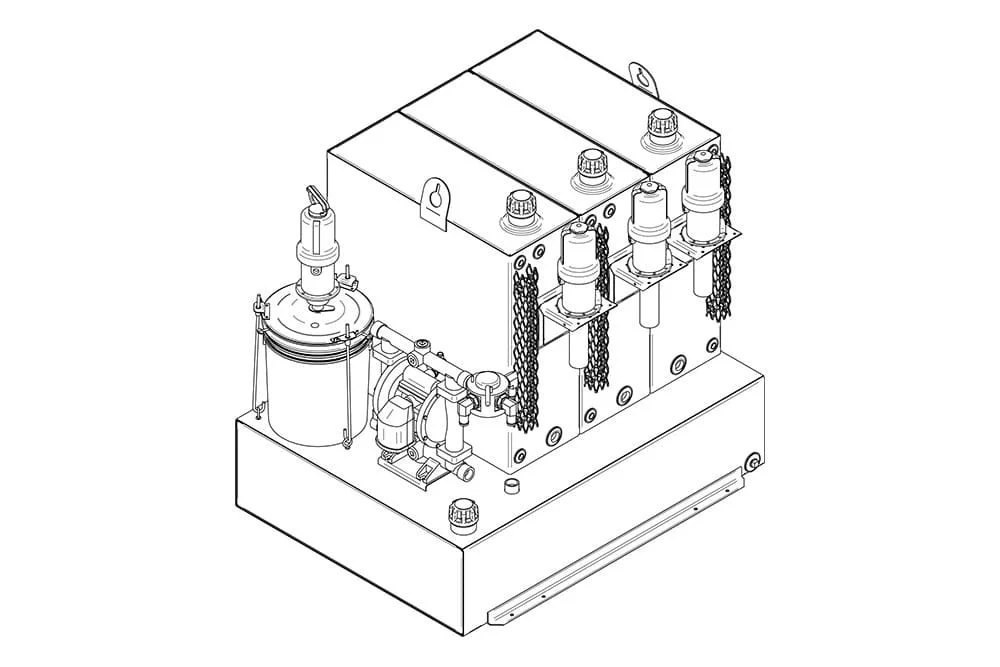

LM200 permanent lube skid

    • Three (3) 40-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 80-gallon salvage oil tank w/ prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm salvage pump w/ 4-way valve for evacuation and discharge of salvage tank

    • 25’ or 50’ new oil reels

    • 25’ or 35’ salvage oil reel

    • Optional 35 lb or 120 lb greaser

    • Dimensions:  47 1/2”W x 39”D x 46”H

    • Dry Weight: 600 lbs

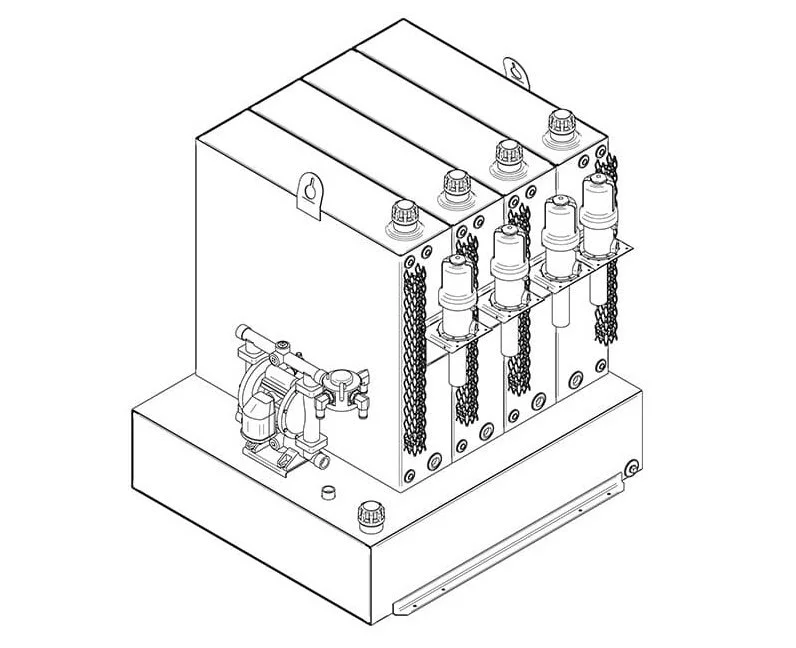

LM300 permanent lube skid

    • Four (4) 50-gallon new oil tanks with filler breather caps & sight gauges

    • One (1) 100-gallon salvage oil tank w/ prevent cap

    • Graco pumps for new oil (3:1 or 5:1)

    • Graco 1050 diaphragm salvage pump w/ 4-way valve for evacuation and discharge of salvage tank

    • 25’ or 50’ new oil reels

    • 25’ or 35’ salvage oil reel

    • Optional 35 lb or 120 lb greaser

    • Dimensions:  47-1/2”W x 45”D x 52”H

    • Dry Weight: 850 lbs

All permanent skids have three options for reel mounting and that will determine the pricing.

Please specify if you would like one of three options:

  • Shipped Loose

  • Reel Cabinet

  • Drip Pan
